Features:
It supports at least 4 modes such as standard Modbus, Mailbox, multiple-delay function and Rear Detection / Front Detection(Remain direction recognition).

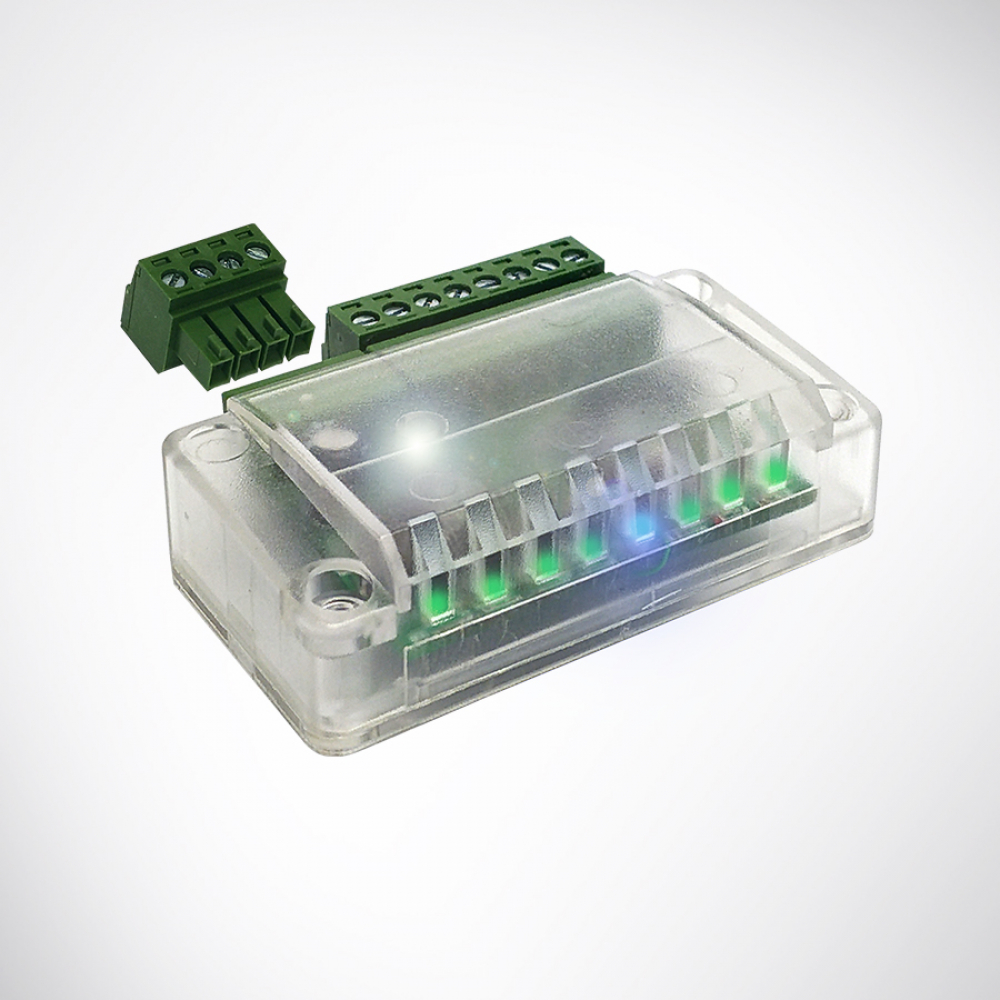

AR-403 Series :
◎AR-403-IO-0001M-IR : Infrared Sensor Module
◎AR-403-IO-0202M : without Infrared Sensor(2DI/2DO)
◎AR-403-IO-0404M-E : without Infrared Sensor (4DI/4DO)
◎AR-403-IO-0404M : without Infrared Sensor (4DI/4DO)
◎AR-403-IO-0202M-IR : built-in Infrared Sensor for Auto detection(2DI/2DO)
|
Item NO. |
AR-403-IO-0001M-IR |
AR-403-IO-0202M |
AR-403-IO-0404M |
AR-403-IO-0202M-IR |
|
I/O |
X |
2DI/2DO |
4DI/4DO |
2DI/2DO |
|
Infrared Module |
V |
X |
X |
V |
|
Item NO. |
AR-403-IO-0404M-E |
AR-403-IO-0001M-IR |
AR-403-IO-0202M |
AR-403-IO-0404M |
AR-403-IO-0202M-IR |
|
Sensor module |
NO |
- |
NO |
NO |
Infrared Module |
|
Power Supply |
9-24VDC |
DC 0V or DC 9~24V |
9-24VDC |
9-24VDC |
9-24VDC |
|
Power consumption |
<1W |
< 0.5W |
<1W |
<1W |
<1W |
|
Communication Interface |
RS-485 / 9600 bps(N,8,1) |
- |
RS-485 / 9600 bps(N,8,1) |
RS-485 / 9600 bps(N,8,1) |
RS-485 / 9600 bps(N,8,1) |
|
Protocol |
SOYAL or Mobus-RTU |
- |
SOYAL or Mobus-RTU |
SOYAL or Mobus-RTU |
SOYAL or Mobus-RTU |
|
Indicator |
PowerTX/RXD.O.D.I. |
- |
PowerTX/RXD.O.D.I. |
Power TX/RX D.O. D.I. |
Power TX/RX D.O. D.I. |
|
Channel |
4DO/4DI |
1 DO (IR output) |
2DO/2DI |
4DO/4DI |
2DO/2DI |
|
Housing Material |
ABS |
ABS |
ABS |
ABS |
ABS |
|
Weight(g) |
23±5 |
19±5 |
31±5 |
31±5 |
31±5 |
|
Dimensions(mm) |
47(L)X35(W)X22(H) |
60(L)X43(W)X20(H) |
60(L)X43(W)X20(H) |
60(L)X43(W)X20(H) |
60(L)X43(W)X20(H) |
