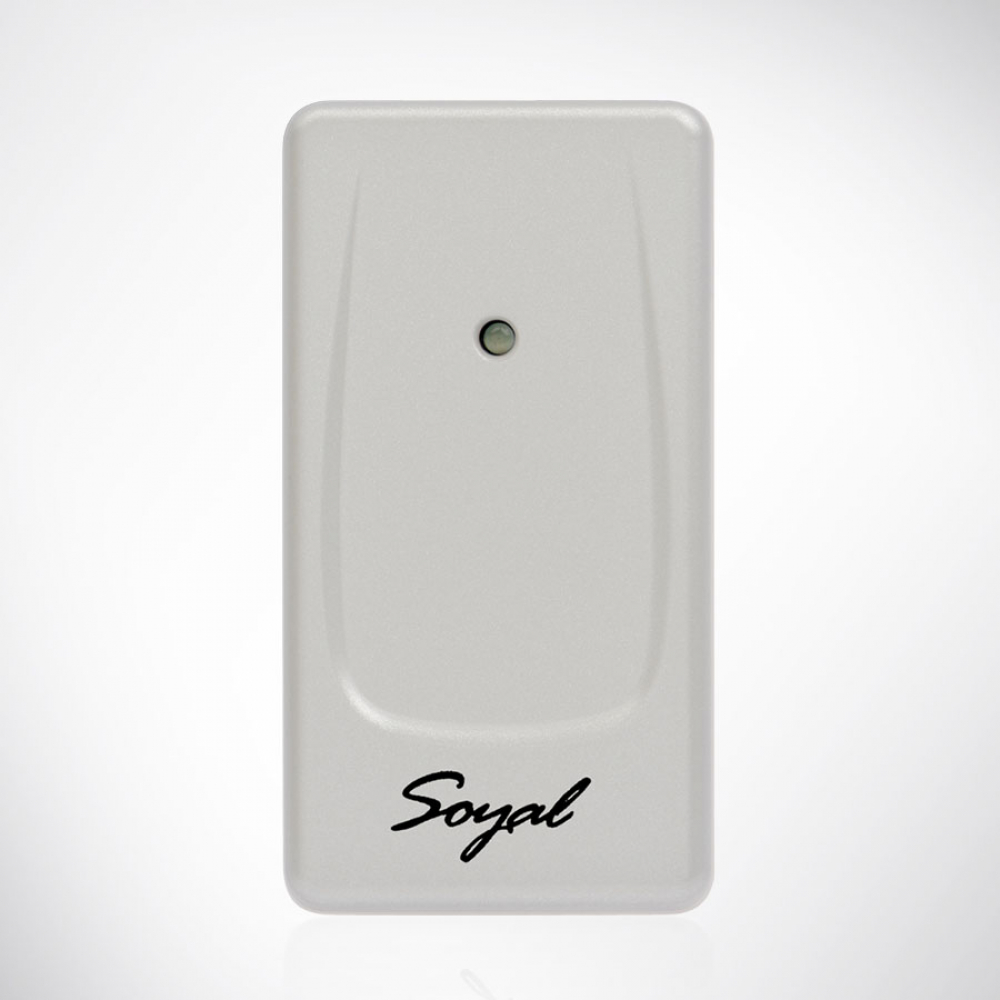

RFID Proximity Controller AR-723-H

Simple access control, Housing dimensions is small and short.

Selectable working frequencies: 125kHz/ 13.56MHz
User capacity: 1,024; Event log: 1,200
Built-in Watchdog to prevent system from hanging
Including the input of door contact, offering the alarm system of both door opening too long and being forced to open
Built-in Multi-Output: Door Lock/ Alarm/ Security trigger signal
1 bi-color LED and 1 beeper for identification
Have the “MASTER CARD” functions, convenient operation
Small and short



Item NO.

723-H

User Capacity

1024

Communication Interface

RS-485/9600 bps(N,8,1)

Frequency

125kHz or 13.56MHz

Installation Environment

IP56(By order)

Intput

Egress(R.T.E.) / Door Sensor

Output

Lock(or Security trigger signal )/ Alarm

Fingerprint Template

No

Other Interface

WG lnput(By order)

Keypad Material

No(By order)

LCD

No

Floors Capacity

32 Floors, 1,024 Users

Time-zone

11 / 63(connect to Multi-Door Networking Controller)

Weight(g)

125kHz : 40±5
13.56MHz : 60±5

Dimension(mm)

81(L)X43(W)X18(H)
